Q.【Compact Router】When Using for the First Time/Settings


How To Use Compact Router


ELECOM Compact Routers are designed to be used at hotels etc. but
when you are using one at your house to connect to the internet, detailed settings are required.
※To connect your Travel router to the internet you need to have an internet access.

Also, to connect your device to the internet via Compact router,
the settings between your device and the Compact router are required.


 <Attention>

 For some Compact router models, the features mentioned below are not available.

 IPv6 address is blocked on the most of the models except for some.
 NGN IPv4 service is not supported as well.
 DDNS and port forwarding feature is not built-in.
 Please see the manual for more details.






 Using at Hotel or Travel destinations

 Using at Home

 Bad Wireless Reception/Not stable







   Using a Hotel router at the Hotel etc.


When you are using a Travel router at the hotel or other travel destinations
please make sure that the place has the Ethernet internet facilities.

Please also ask for the internet (wired) ID and password as well.
ID/password to use wired internet access in the room.
※ID/password may not be required at some hotels.

Some rooms may have only LAN (Ethernet) connector but not the cable.
In that case please bring your own cable.



   The wall in a room

Internet settings
done by
the Hotel beyond
this point.




※WRC-300 series
Settings/directions are same for other models/series






 WRH-S583 series


◆Models concerned
・WRH-S583BK ・WRH-S583WH

This product is set as hotel router mode when it is shipped from the factory.
Please connect it to Ethernet jack at the hotel via Ethernet cable then it will automatically detect the network.


There is one Ethernet (LAN) port
 to connect to the modem/Ethernet jack at the hotel.






 WRH-H300 series


◆Model concerned
・WRH-H300BK ・WRH-H300WH

 There is a switch on the back face of the product.
 Please switch it downwards.

 This is Access Point Modes (AP mode)
 Please connect to Ethernet jack at the hotel
 via Ethernet cable
and it will automatically detect the network.

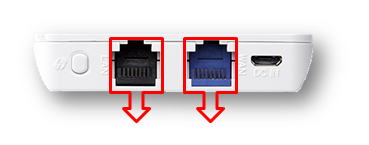

LAN port (BLACK) -
to connect to
computer game devices
WAN port (BLUE) -
to connect to the modem/
Ethernet jack at the hotel







 WRH-300xx2-S series


◆Model concerned
・WRH-300BK2-S ・WRH-300WH2-S

This product is set as hotel router mode when it is shipped from the factory.
Please connect it to Ethernet jack at the hotel via Ethernet cable then it will automatically detect the network

There is one Ethernet (LAN) port
 to connect to the modem/Ethernet jack at the hotel







 WRH-300 series


◆Model concerned
・WRH-300BK ・WRH-300WH
・WRH-300SV ・WRH-300RD

This product is set as Access Point mode when it is shipped from the factory.
Please connect it to Ethernet jack at the hotel via Ethernet cable then it will automatically detect the network.
※Wireless network is not available until Ethernet (LAN) cable is connected.

LAN port (BLACK) -
to connect to
computer game devices
WAN port (BLUE) -
to connect to the modem/
Ethernet jack at the hotel








 WRH-150 series


◆Model concerned
・WRH-150BK ・WRH-150WH

This product is set as Access Point mode when it is shipped from the factory.
Please connect it to Ethernet jack at the hotel via Ethernet cable then it will automatically detect the network.

Blue port -
to connect to the modem/
Ethernet jack at the hotel











  Using a Hotel router at Home

When you are using a Compact router at home,
switching modes and the internet settings are required depending on
your network environment and usage.

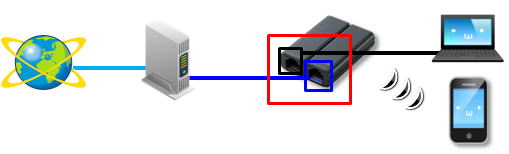

Please try to connect your router to the modem via Ethernet cable
and check if you can connect to the internet from Wi-Fi devices.




Blue port (INTERNET) - to connect to the modem
Black port (LAN/SETUP) - to connect to your computer etc.

When you cannot connect to the internet

・Please check your network type:

 ・DHCP
 ・PPPoE


Please refer to your ISP when you are not sure.


<<PPPoE>>
Please make sure that you have 【User ID】and【Password】to connect to the internet.

<<DHCP>>
Please turn off the modem and discharge for an hour.


Please see below on this page for more detailed internet settings.



 WRH-S583 series


◆Model concerned
・WRH-S583BK ・WRH-S583WH


<<DHCP>>
 ・Connect the router Ethernet cable to the product and turn on the power.
 ・Wait for a while until it automatically starts syncing.
 ・Please try to connect to the internet after 5 minutes.


※PPPoE/Static IP address is not supported on this product※
This product is not available when you don't have a router at your place and
saving the information from ISP directly to your computer to connect to the internet.
You need to have a router to use this product.
When the settings are done on the other devices you can use this product with the same settings as DHCP network (mentioned above).


There is one Ethernet (LAN) port
 to connect to the modem/
 Ethernet jack at the hotel
.






 WRH-H300 series


◆Model concerned
・WRH-H300BK ・WRH-H300WH

<<DHCP>>
 There is a switch on the back face of the product.
 Please switch it upwards.

 This is Router Modes (RT mode)
 Please wait for 5 minutes until it finishes syncing.

<<PPPoE>>
You need to log in to the Management page to set up.
Please see the link below
→ How to Set up


LAN port (BLACK) -
to connect to
computer game devices
WAN port (BLUE) -
to connect to the modem/
Ethernet jack at the hotel






 WRH-300xx2-S series


◆Model concerned
・WRH-300BK2-S ・WRH-300WH2-S

<<PPPoE>>
You need to log in to the Management page to set up.

There is one Ethernet (LAN) port
 to connect to the modem/
Ethernet jack at the hotel







 WRH-300 series


◆Model concerned
・WRH-300BK ・WRH-300WH
・WRH-300SV ・WRH-300RD

You need to long in to the management page to set up.
Please connect your router and this product and then connect (wired/wireless)
your internet device.
When you don't have a router Network settings are required on your computer.
Please see the link below and log in to the management page.

Set up this product after logging in to the management page.

→ How to Set up


LAN port (BLACK) -
to connect to
computer game devices
WAN port (BLUE) -
to connect to the modem/
Ethernet jack at the hotel






 WRH-150 series


◆Model concerned
・WRH-150BK ・WRH-150WH

You need to log in to the Management page to set up.
Please see the link below

Set up this product after logging in to the management page.

→ How to Set up



Blue port -
to connect to the modem/
Ethernet jack at the hotel











  Bad Wireless Reception/Not Stable


Wireless signal gets weaker because of the interfering objects (wall etc.)
and other wireless networks near by.

Please try to change the channel when you are having a bad reception/unstable connection.
Using a static channel is helpful to lessen the network interference.
See the links below for each model.


※Standing Routers are recommended when you wish to use at home because of its signal reach and strength.

→ How to Change the Wi-Fi Channel
