文書番号:5743
Q.【WRH-H300x Series】Setup Manual


WRH-H300 Series How to Setup


 Products
WRH-H300BK WRH-H300WH

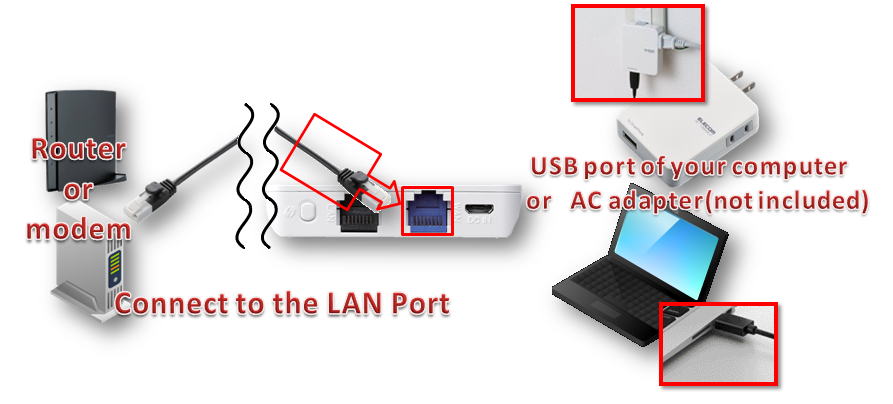

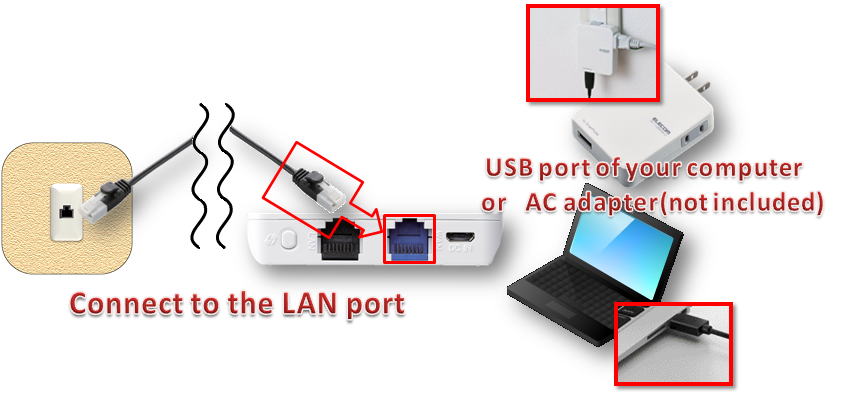

 Connect to the LAN Port


Port of the router

This product can be powered from Universal Serial Bus port of PC and are convenient
because power can be supplied from an AC adapter for smartphone sold separately !!



【At the hotel】
Connect your ELECOM router to the information wall socket using a LAN cable and
then your router to the power source(such as your computer or AC adapter(it is not included this product).
Now you can use your computer or smart phone by wireless LAN.






【At home】
Connect your ELECOM router to the information wall socket or your modem using
a LAN cable and then your router to the power source(such as your computer or AC adapter(it is not included this product).
Now you can use your computer or smart phone by wireless LAN.






connect to a PC or the smartphone by wireless
Now, can you use Internet?
YES ⇒ Please enjoy!
No  ⇒ Please check the points below depending on place of use.
In a hotel At some hotels, the web browser(such as Internet Explorer)may require to varify.
In this case, ask hotel receptionist how to do it.
At home Please make the Internet settings for the router
This allows you to configure your router for wired and wireless Internet connection.






 Access the management screen

This is to identify if the connection coming from your Internet Service Provider (ISP) is working.

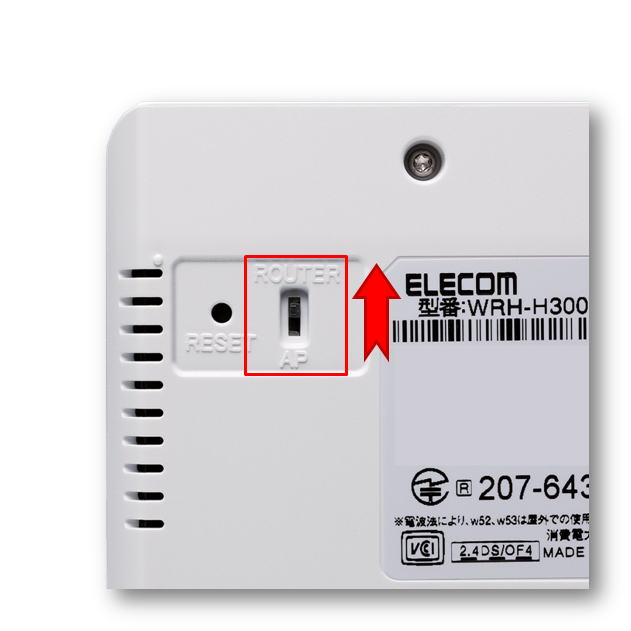

1. Change the" Router mode"

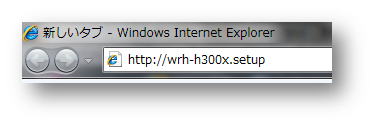

2. Start up the web browser (e.g., IE, Safari) on your device, and enter "http://wrh-h300x.setup" in the address bar.


When you cannot input, please click the following.

http://wrh-h300x.setup

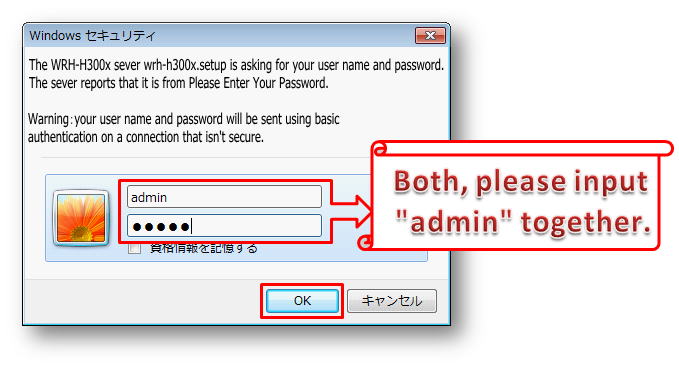

3. When the authentication screen is displayed,enter "admin" for both the user name and the password.

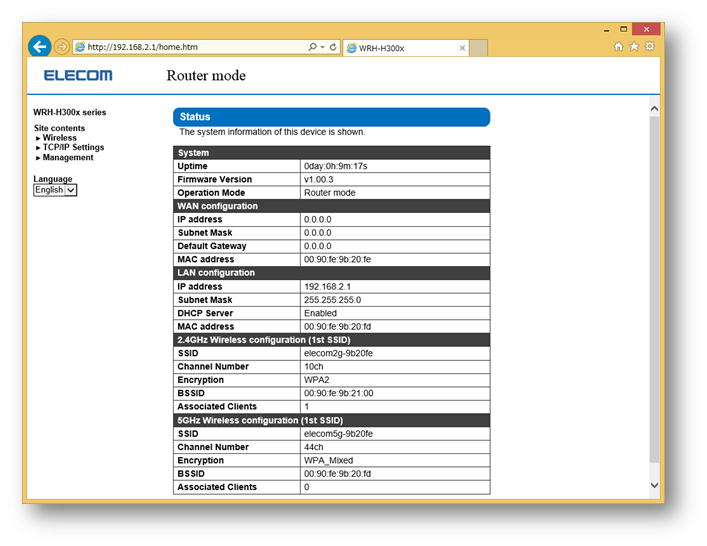

4. The management screen opens.







 Make the Internet settings

Open the management screen of Router mode.


1. Click TCP/IP Settings
And, please click WAN interface

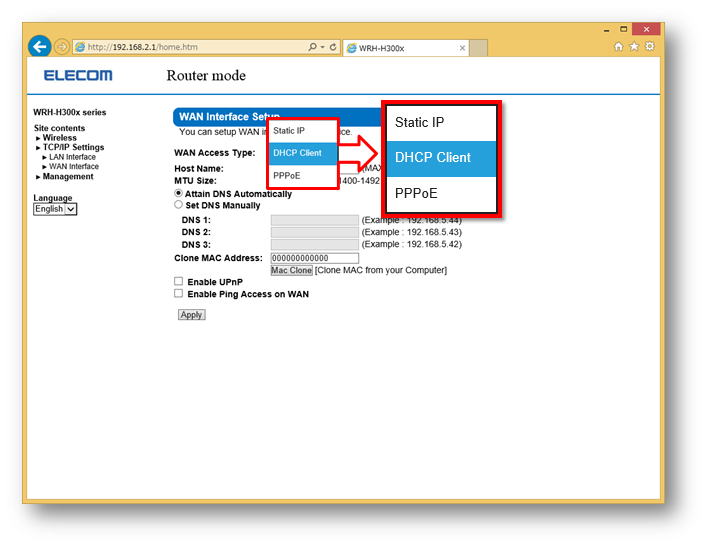

2. Choose the appointed setting.
DHCP Cliant or PPPoE or Static IP



<Reference>

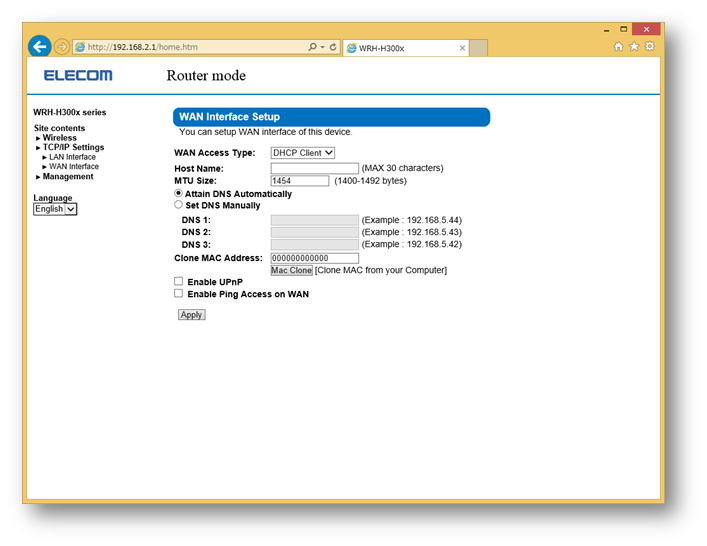

 DHCP Cliant

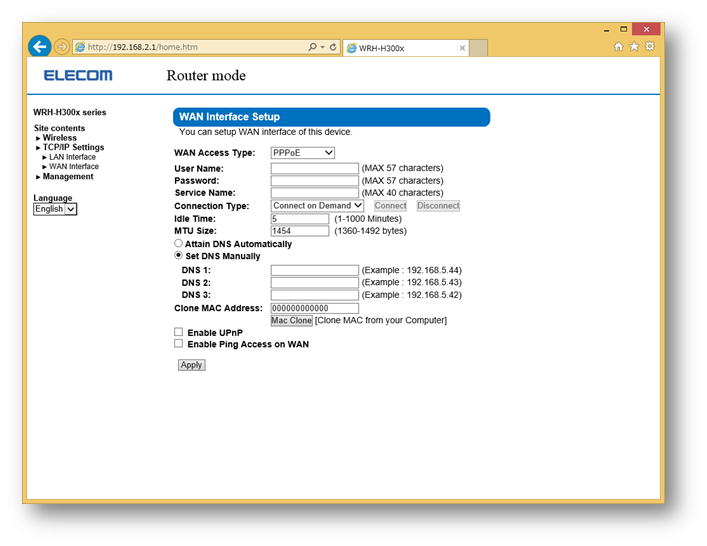

 PPPoE

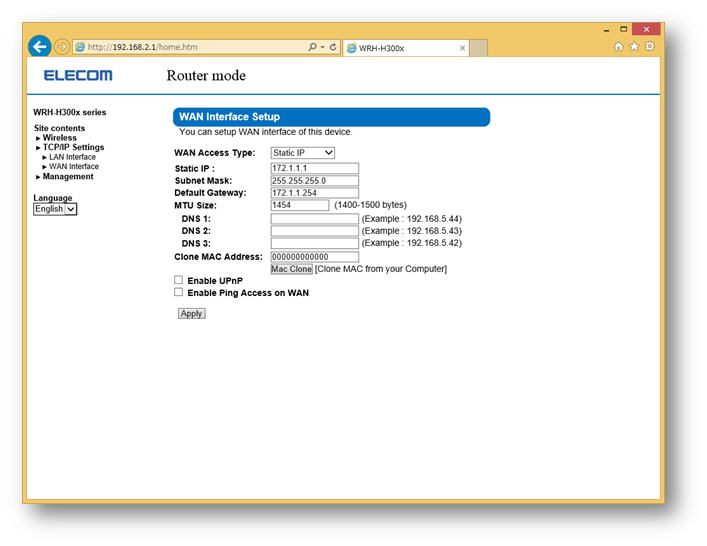

 Static IP(Static IP Address)
