Q.【WRH-300x Series】Setup Manual


WRH-300 Series How to Setup


 Products
WRH-300BK WRH-300WH
WRH-300SV WRH-300RD

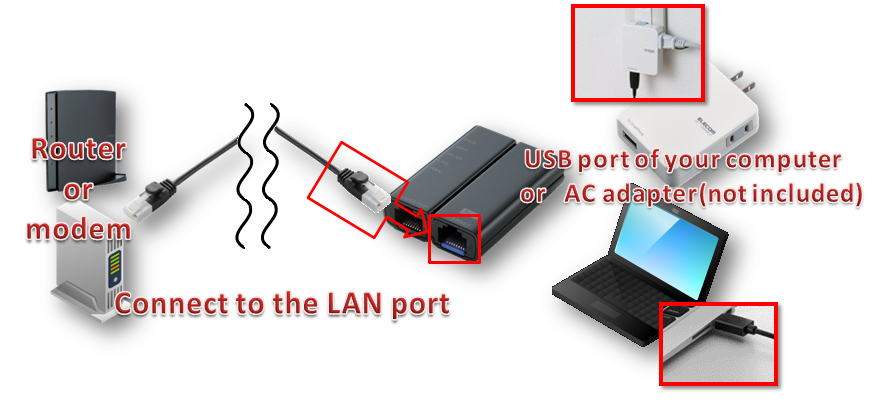

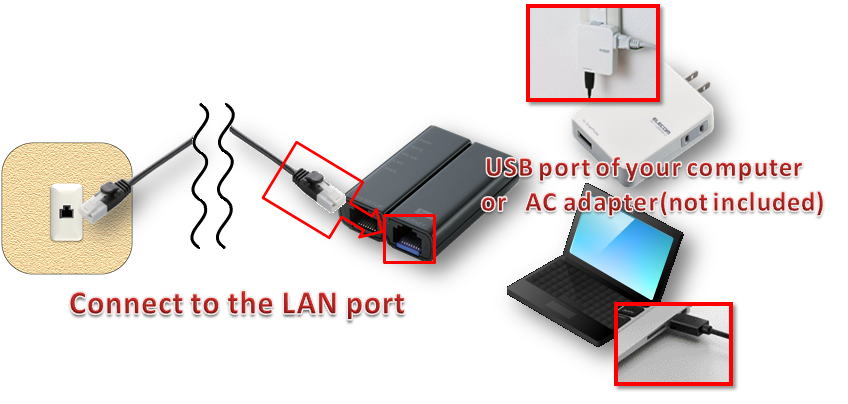

 Connect to the LAN Port


Port of the router

This product can be powered from Universal Serial Bus port of PC and are convenient
because power can be supplied from an AC adapter for smartphone sold separately !!



【At the hotel】
Connect your ELECOM router to the information wall socket using a LAN cable and
then your router to the power source(such as your computer or AC adapter(it is not included this product).
Now you can use your computer or smart phone by wireless LAN.






【At home】
Connect your ELECOM router to the information wall socket or your modem using
a LAN cable and then your router to the power source(such as your computer or AC adapter(it is not included this product).
Now you can use your computer or smart phone by wireless LAN.






connect to a PC or the smartphone by wireless
Now, can you use Internet?
YES ⇒ Please enjoy!
No  ⇒ Please check the points below depending on place of use.
In a hotel At some hotels, the web browser(such as Internet Explorer)may require to varify.
In this case, ask hotel receptionist how to do it.
At home Please make the Internet settings for the router
This allows you to configure your router for wired and wireless Internet connection.






 Access the management screen

This is to identify if the connection coming from your Internet Service Provider (ISP) is working.



1. Make the device a static IP address


 Click on the links below to know how to connect to your
 wireless network for each operating system
WindowsXP
WindowsVista/7
Windows8/8.1
Mac OS X






 WindowsXP
1. Click "Start"


2. Click "Control Panel"


3. Click "Network and Internet Connections"
※Or look at 4


4. Click "Network Connections"




or
5. right-click "the current connection"

・Local Area Connection



・Wireless network connection



6. Click "Properties"

7. Click "Internet Protocol(TCP/IP)"and
Click "Properties"


8. Check "Use the following IP address"
・IP address=192.168.2.100
・Subnet mask=255.255.255.0
・Default gatewey=192.168.2.251

 Click here after completion






 WindowsVista / 7
1. Click "Start"


2. Click "Control Panel"


3. Please look for the following

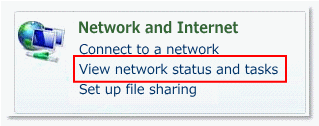

Click "View network status and tasks"

or
Click "Network and Sharing Center"
4. Please look for the following


[ Windows7 ]
Click "Change adapter settings"


[ WindowsVista ]
Click "Manage network connections"
5. right-click "the current connection"

・Local Area Connection



・Wireless network connection


6. Click "Properties"


7. Click "Internet Protocol Version4(TCP/IPv4)"and
Click "Properties

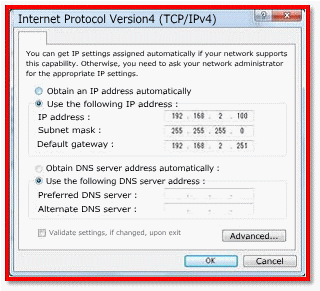

8. Check "Use the following IP address"
・IP address=192.168.2.100
・Subnet mask=255.255.255.0
・Default gatewey=192.168.2.251

 Click here after completion






 Windows8 / Windows8.1
1. Click "Control Panel"


[ Charms ] ⇒ [ Settings ] ⇒ [ Control Panel ]
2. Please look for the following


Click "View network status and tasks"

or

Click "Network and sharing Center"
3. Click "Change adapter settings"

4. right-click "the current connection"

・Local Area Connection
 or Ethernet




・Wi-Fi



5. Click "Properties"


6. Click "Internet Protocol Version4(TCP/IPv4)"and
Click "Properties"

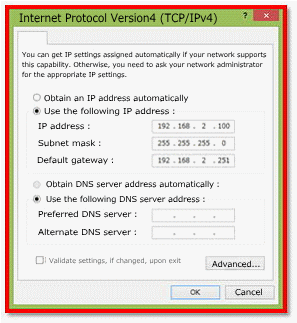

7. Check "Use the following IP address"
・IP address=192.168.2.100
・Subnet mask=255.255.255.0
・Default gatewey=192.168.2.251


 Click here after completion






 Mac OS X
1. Click "Apple Logo"


2. Click "System Preferences"


3. Click "Network"


4. click "the current connection"

・Ethernet


・Wi-Fi or AirMac

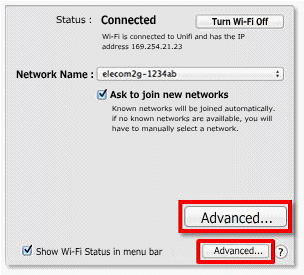

5. Click "Advanced..."

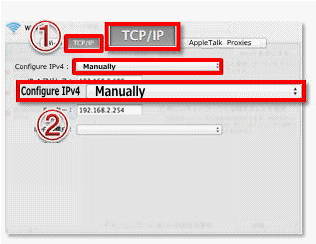

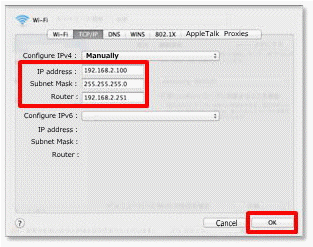

6. Click "TCP/IP"and
Confingure IPv4"Manually"

7. ・IP address=192.168.2.100
・Subnet mask=255.255.255.0
・Router=192.168.2.251

8. Click "Aplly"


 Click here after completion

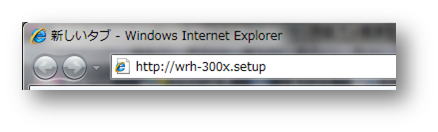

2. Start up the web browser (e.g., IE, Safari) on your device, and enter "http://wrh-300x.setup" in the address bar.


When you cannot input, please click the following.

http://wrh-300x.setup

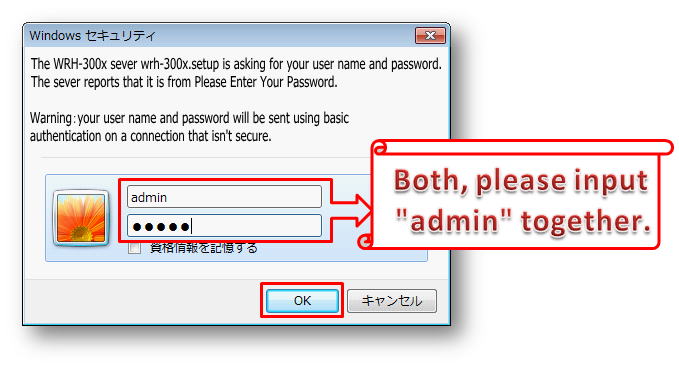

3. When the authentication screen is displayed,enter "admin" for both the user name and the password.

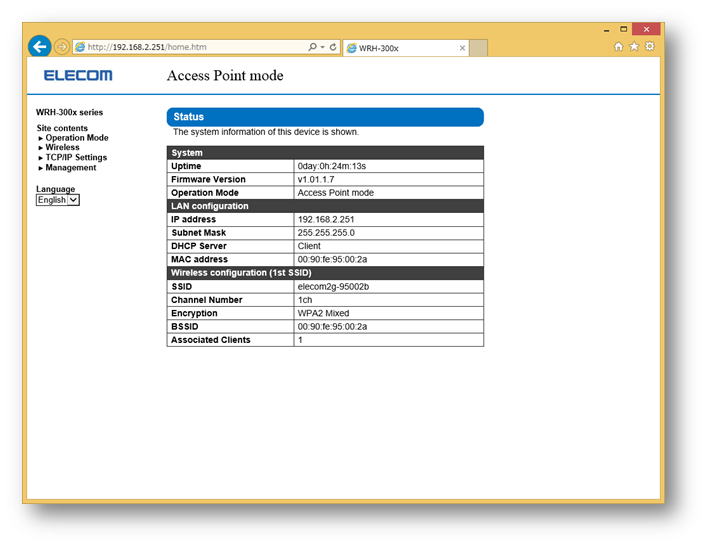

4. The management screen opens.







 Access the management screen

See the "Access the management screen"

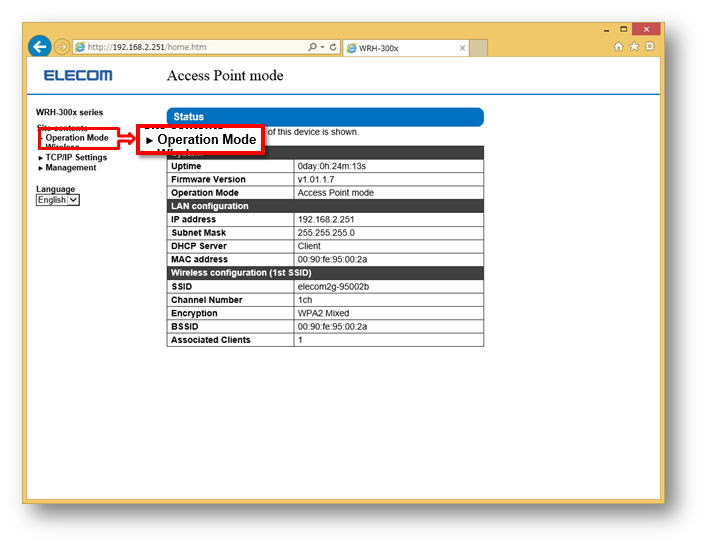

1. Click "Operation mode"

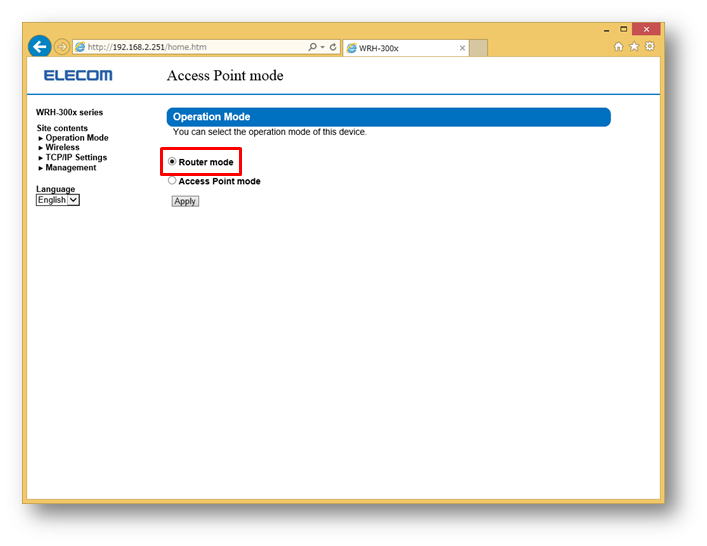

2. check "Router mode"

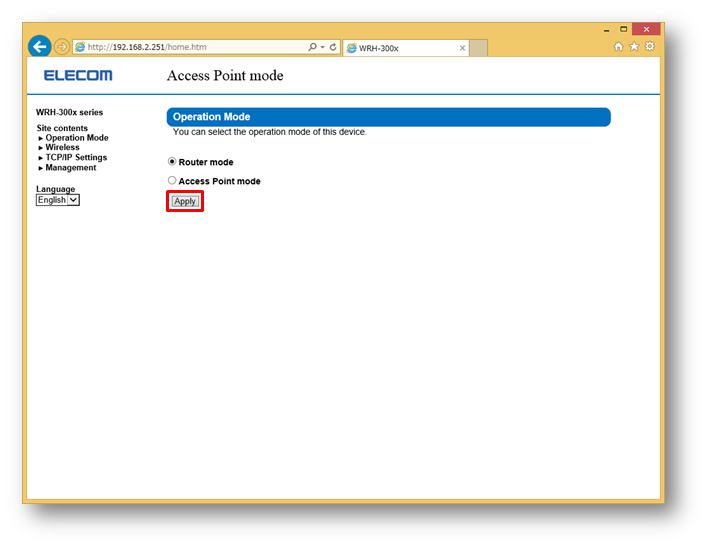

3. Click "Apply"


The product reboots.
Wait until countdown is over.

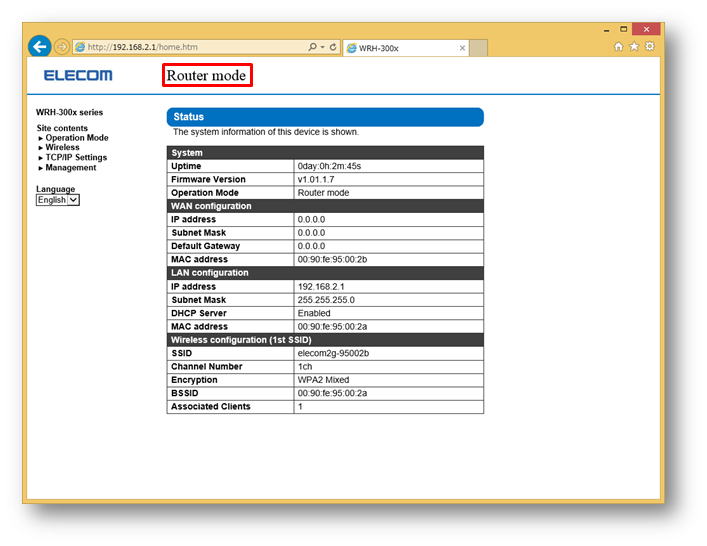

4. Please confirm whetehr the product is set in the "Router mode".







 Make the Internet settings

Open the management screen of Router mode

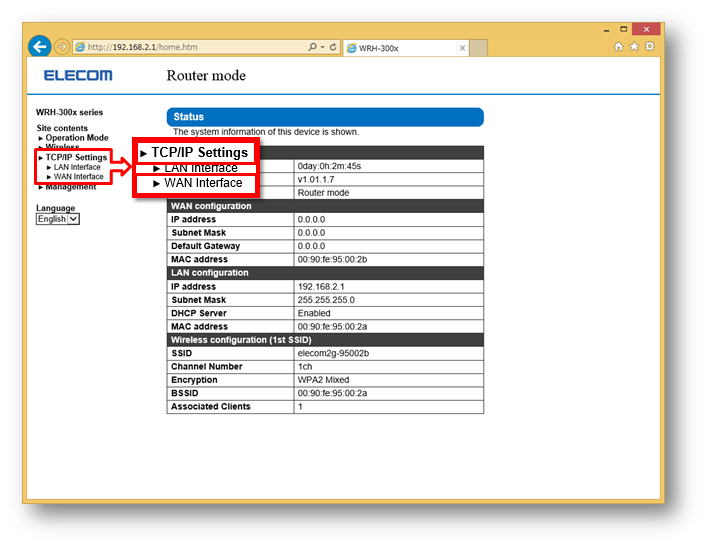

1. Click TCP/IP Settings
And, please click WAN interface

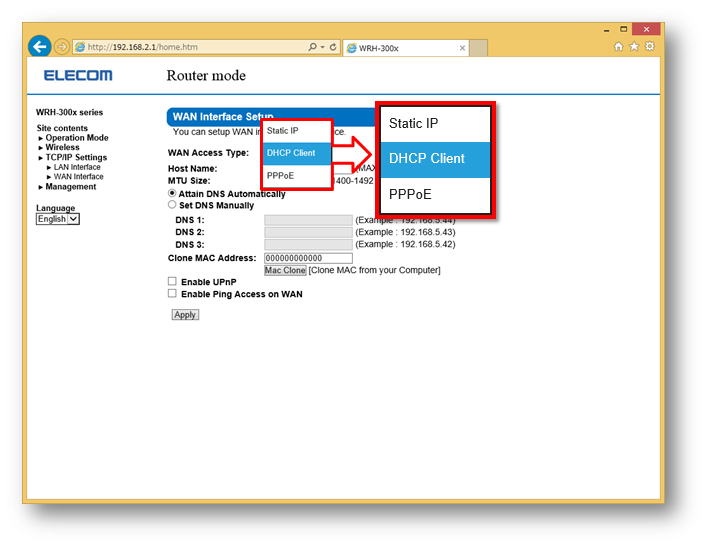

2. Choose the appointed setting.
DHCP Cliant or PPPoE or Static IP



<Reference>

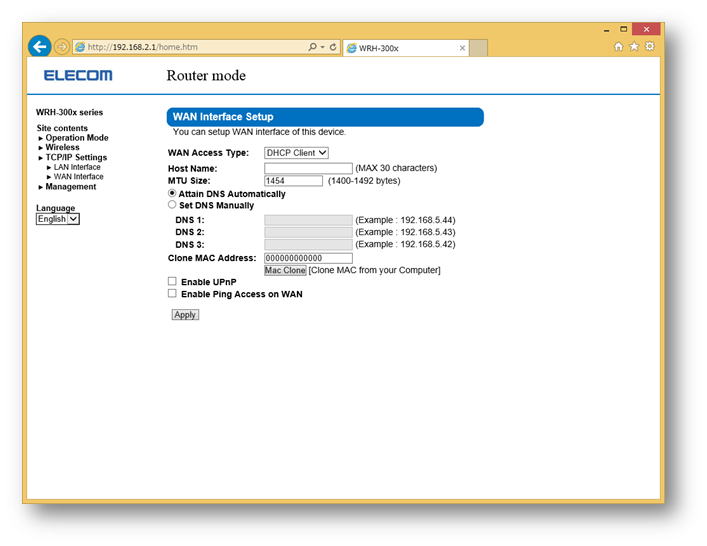

 DHCP Cliant

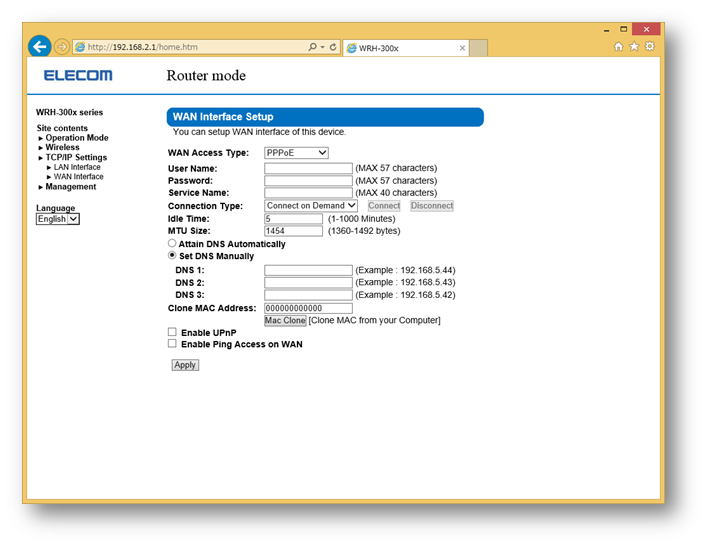

 PPPoE

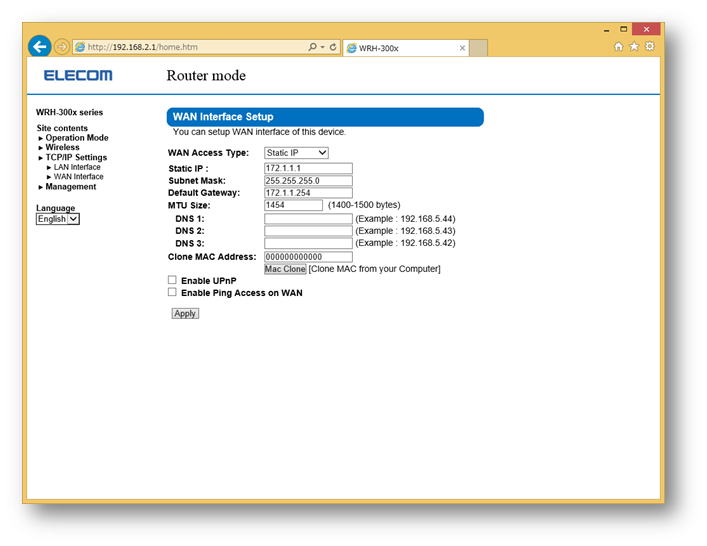

 Static IP(Static IP Address)
